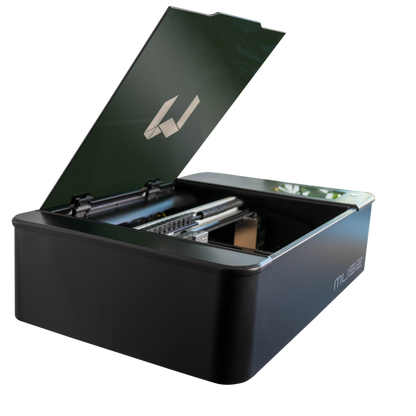

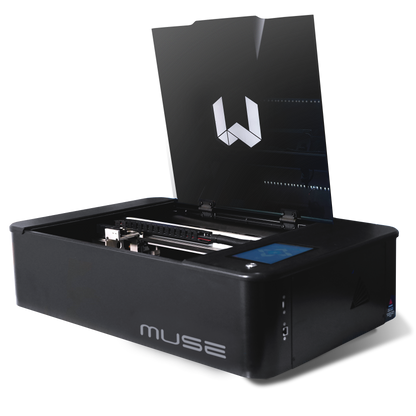

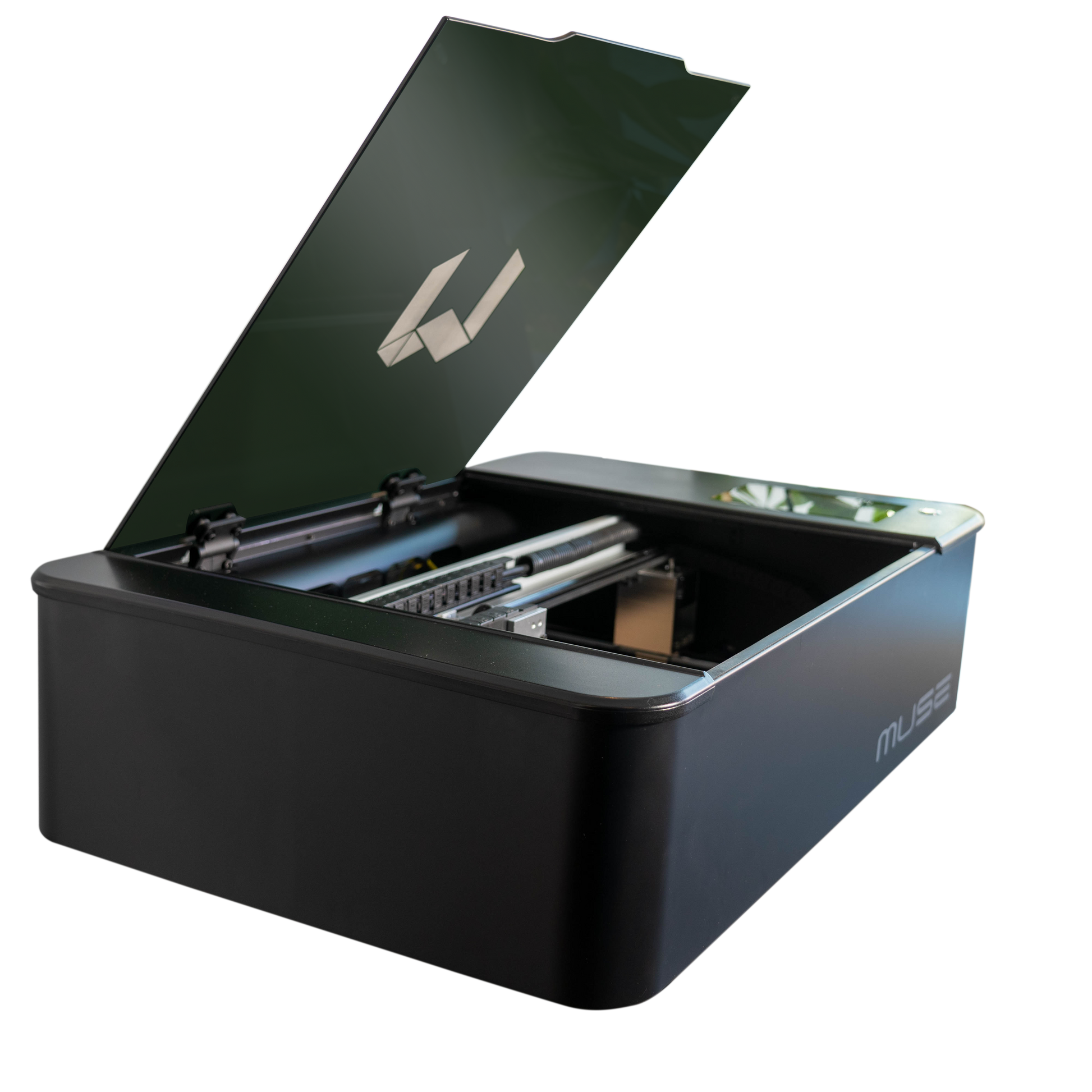

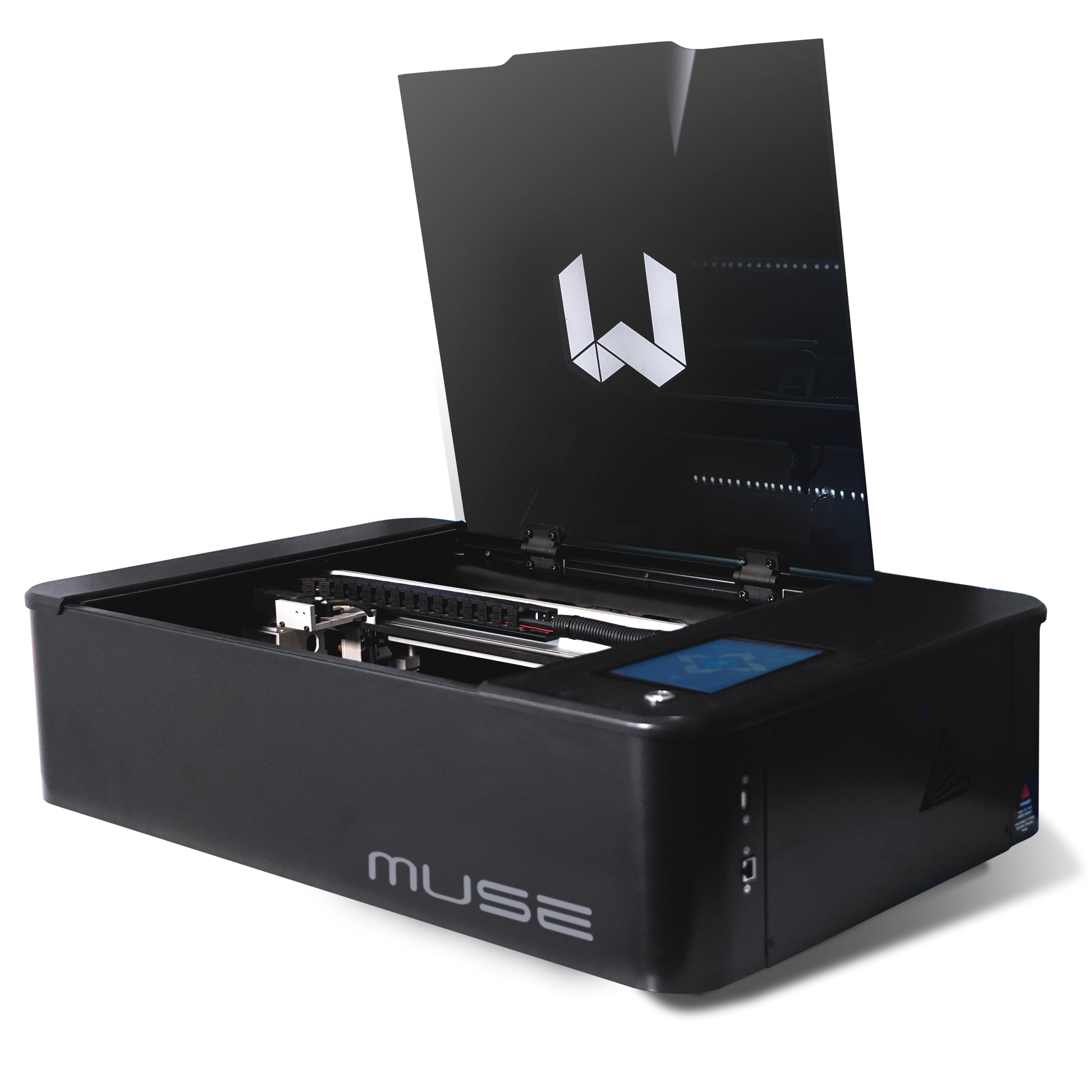

FSL Muse 3D Autofocus CO₂ Laser Cutter & Engraver (40W / 45W) – Smart Desktop System with 3D Camera & Autofocus

PRECISION, AUTOMATION, AND FASTER WORKFLOW IN ONE SYSTEM

The Muse 3D Autofocus is a desktop CO₂ laser built for creators and businesses who want accuracy without manual setup.
With 3D camera mapping, motorized autofocus, and an integrated cooling bundle, it removes guesswork and keeps production consistent.

1-Year Warranty | U.S. Shipping Available | Dedicated Support

👉 🔗 View Official Price & Availability →
Compare pricing or buy directly from manufacturer

WHO THIS MACHINE IS FOR

Creators who want easier setup and precise placement
Small businesses producing products regularly
Users upgrading from diode or basic CO₂ systems
Anyone who values speed, accuracy, and reduced errors

WHEN TO CHOOSE THIS MACHINE

You want automatic focus and alignment (no manual adjustments)
You need consistent placement for repeat jobs
You’re producing items regularly and want fewer mistakes
You want a complete system with cooling and air included

WHEN TO SKIP THIS MACHINE

You’re just getting started and want the lowest-cost option
You don’t need camera alignment or autofocus features
You need a larger working area (consider Titan)
You need metal engraving (fiber laser required)

WHAT YOU CAN CREATE

Acrylic signs and display pieces
Custom wood products and décor
Leather goods and accessories
Engraved glass and coated materials
Batch production items with consistent alignment

KEY FEATURES

40W CO₂ laser (upgradeable to 45W)
Intel RealSense™ 3D camera for surface mapping and design placement

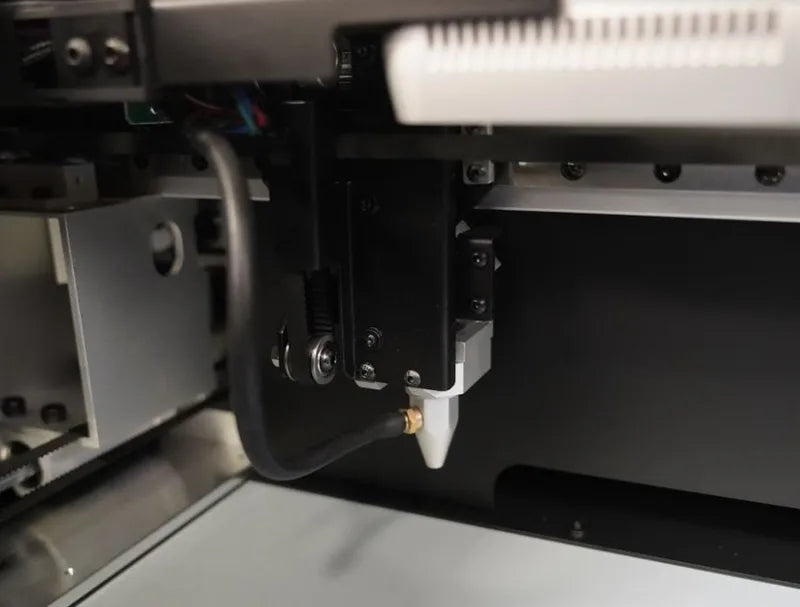

Motorized autofocus for automatic height adjustment
RetinaEngrave v3.0 browser-based software (no installation required)
Integrated Coolbox system (cooling + air assist + performance control)
Removable floor for oversized objects
Internal exhaust fan for cleaner operation
7" LCD touchscreen for control and monitoring

MACHINE SPECIFICATIONS

Laser System
Laser Type: Sealed CO₂ Laser Tube
Power: 40W (upgradeable to 45W)
Laser Class: Class 3
Resolution: Up to 1000 DPI
Focus System: Motorized autofocus

3D Technology
Camera: Intel RealSense™ 3D camera
Function: Real-time surface mapping and job alignment

Working Area
Engraving Area: 20" × 12" (508mm × 305mm)
Z Height: 2.5"
Removable Floor: Yes

Machine & Build
Construction: All-metal chassis
Machine Size: ~32.3" × 20.3" × 8.5"
Machine Weight: ~54 lbs
Shipping Weight: ~150 lbs

Performance & Control
Operation Modes: Raster, vector, combined

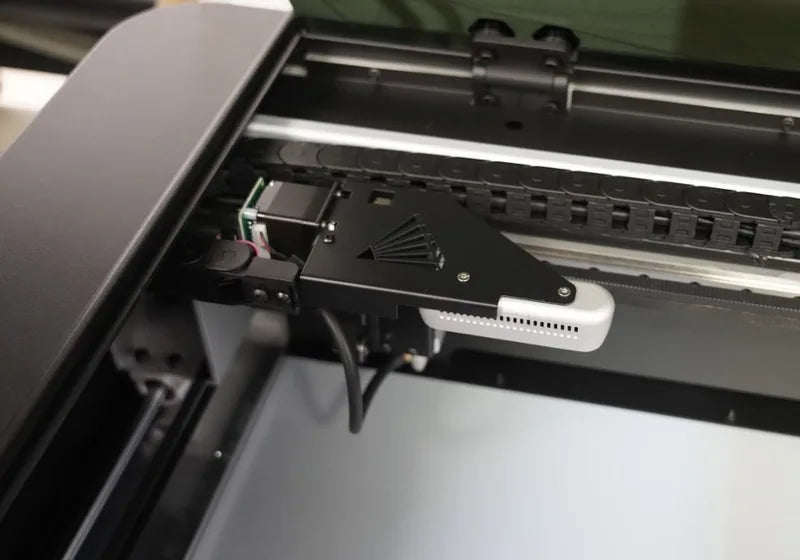

Motion System: High-precision stepper motors
Interface: 7" LCD touchscreen
Software: RetinaEngrave v3.0 (browser-based)

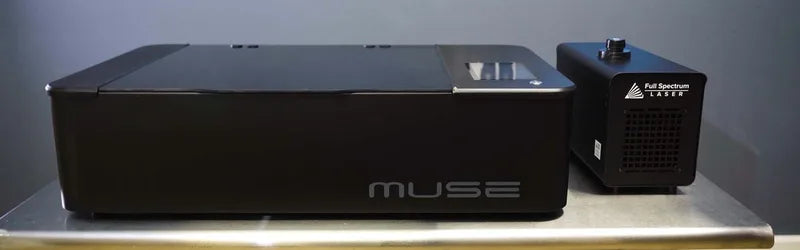

Cooling & Air System (Included Coolbox)
Integrated air compressor (software-controlled)
Water cooling system
Honeycomb work surface included
Internal exhaust fan

Power & Requirements
Power Supply: 120V
Power Consumption: <1000W
Operating Temperature: 0°C – 45°C

EXPANDABILITY

Optional rotary attachment (tumblers, bottles, glassware)
Optional exhaust and filtration upgrades
Compatible with additional lenses and accessories

PERFORMANCE NOTES

Cuts acrylic cleanly (including clear acrylic—unlike diode lasers)
Eliminates manual alignment and focusing errors
Reduces wasted materials and setup time
Ideal for repeat jobs and small batch production
Not designed for metal engraving (fiber laser required)

BOTTOM LINE

If you want a CO₂ laser that removes setup guesswork and improves consistency, the Muse 3D Autofocus is one of the easiest ways to speed up your workflow and get professional results every time.

👉 🔗 View Official Price & Availability →
Compare pricing or buy directly from manufacturer

WHY BUY FROM NOVA LASER ENGRAVERS

We don’t list everything — only machines that perform in real use.

Curated high-performance systems
Focused on creators and small businesses
Reliable equipment built to scale with your operation

FREQUENTLY ASKED QUESTIONS

Is this beginner friendly?
Yes, but it’s best for users ready to produce consistently and benefit from automation.

What materials can it cut and engrave?
Wood, acrylic (including clear), leather, glass, and coated materials.

What does the 3D camera do?
It maps your material surface and helps align designs accurately before engraving.

Is cooling included?
Yes. The Coolbox bundle includes cooling, air assist, and performance management.

Do I need special software?
No. It runs in your browser with no downloads required.
